DC Controller Circuit - 01

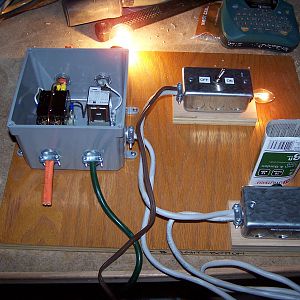

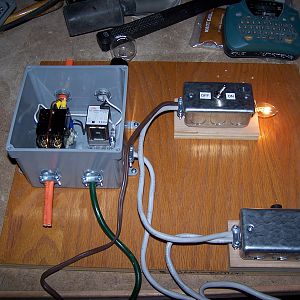

6'' by 6'' x 4'' deep PVC junction box with 230 V Contactor at left and DPDT ''Ice Cube'' relay for Bin Sensor at right. Incoming power from a Remote Controlled outlet is fed through normally closet contacts of the ''Ice Cube'' relay to the coil of the Contactor. The Contactor then passes 230V power to the 5HP Leeson motor when activated by the remote.
Click to expand...
